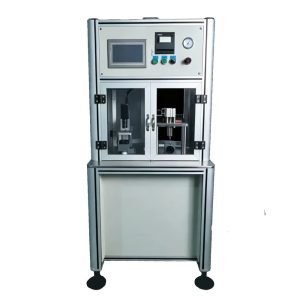

Equipment Description
This equipment is mainly used for the pressure testing of cylindrical-battery combination caps and the air-tightness inspection of the sealed cap-to-can joint. Test functions include: air-tightness testing (measuring the pressure value of the cap and the sealed head), pull-strength testing of the welded joint between the cap connector and the explosion-proof disc, and printing of the test results.
Basic Configuration
| No. |
Component |
Description |
| 1 |
Frame |
Built from 30×30 mm standard aluminum profile; upper layer houses the control/electrical box; lower layer has a safety guard cover; finished in computer-white baking paint. |
| 2 |
Test Set |
One complete test unit for cap pressure and air-tightness inspection. |
| 3 |
Needle-Puncture Mold |
One set of cylindrical-type needle-puncture mold; puncture-hole diameter 2.0 mm. |
| 4 |
Gas System |
High-pressure test gas piping and venting/discharge system, using bottled nitrogen. |
| 5 |
Pneumatic Components |
AirTAC pneumatic parts for stable, repeatable actuation. |
| 6 |
Front Door |
Transparent PC board with safety-door interlock switch for operator protection. |
| 7 |
Key Instruments |
PLC; touch screen; printer; pressure master/slave gauges; nitrogen supply; display system, piercer, and test set — all Meierdabrand. |
Technical Parameters
| No. |
Parameter |
Value |
Remarks |
| 1 |
Maximum test pressure |
300 kg |
|
| 2 |
Bottled nitrogen pressure |
0–25 MPa |
|
| 3 |
Adjustable test pressure |
0–4 MPa |
|
| 4 |
Standard fixture |
18650 mold, 1 set of cell test fixture, 1 set of cap fixture and 18650 piercing fixture |
|
| 5 |
Overall dimensions (L×W×H) |
650 × 450 × 1398 mm |
|
| 6 |
Power supply |
220 V / 50 Hz |
Single-phase |
| 7 |
Air pressure |
0.5–0.6 MPa |
|
