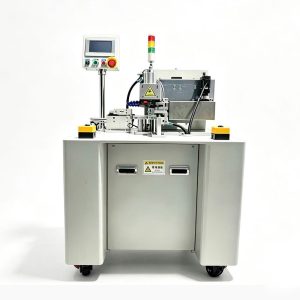

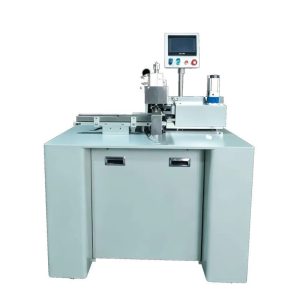

Equipment Description
This equipment is used for the grooving (rolling-slot) process of rechargeable Ni-MH, Ni-Cd, and cylindrical lithium batteries. The grooving machine is controlled by a PLC, intermediate relay, and time relay that coordinate the actions of each cylinder. The motor drives the main body at high speed to perform uniform automatic grooving on the cylindrical steel can that holds the cell core. Applicable steel-can model: 21700.
Basic Configuration
| No. |
Component |
Description |
| 1 |
Cylinder |
AirTAC pneumatic cylinder. |
| 2 |
Electrical Control System |
Mitsubishi electrical control system. |
| 3 |
Sensor |
Yangming / AirTAC sensors. |
| 4 |
Power Supply |
Omron power supply. |
| 5 |
HMI |
7-inch display-control / Weinview touch screen. |
| 6 |
Electrical Components |
Zhengtai / Schneider electrical parts. |
| 7 |
Adjustable-Speed Motor |
Taiwan-invested brand motor. |
| 8 |
Guide Rail |
HIWIN / CPC linear guide rails. |
| 9 |
Guide Rail & Guide Post |
Self-made brass / precision guide post. |
| 10 |
Frame |
Self-made, integrally welded frame,整机烤漆 (whole-machine baking paint finish). |
| 11 |
Parts |
Self-made parts in anodized aluminum / chrome-plated steel. |
Technical Parameters
| No. |
Parameter |
Value |
Remarks |
| 1 |
Applicable steel-can model |
21700 |
|
| 2 |
Rated voltage |
220 V / 50 Hz |
|
| 3 |
Rated power |
0.75 kW |
|
| 4 |
Working air pressure |
0.5–0.6 MPa |
|
| 5 |
Equipment weight |
175 kg |
|
| 6 |
In/out-feed height from floor |
approx. 780 mm |
|
| 7 |
Overall dimensions (L×W×H) |
1100 × 870 × 1900 mm |
|
| 8 |
Rolling-knife thickness error |
0.01 mm |
|
| 9 |
Knife-edge finish |
Ra 0.4 or better |
Micrometer measurement |
| 10 |
Grooving-mold accuracy error |
0.01 mm |
|
| 11 |
Grooving depth |
0.02 mm |
|
| 12 |
Grooving-mold concentricity |
0.01 mm |
|
| 13 |
Grooving mold to tail-top concentricity |
0.02 mm |
|
| 14 |
Grooving concentricity |
0.03 mm |
|
| 15 |
Grooving inner-diameter error |
0.03 mm |
|
| 16 |
Grooving height error |
0.03 mm |
|
| 17 |
Grooving edge-height error |
0.03 mm |
|
| 18 |
Post-grooving can flaring |
< 0.08 mm |
No flaring or ovality |
| 19 |
Coating scratches / peeling |
None |
After grooving |
